RFX17

Starting at $520 ea.

Available in 19" | 20" | 21" | 22"

Widths 8" - 12"

The RFX17 is a modern split 10 mesh arrangement featuring our iconic Rohana spokes and finishes to maintain an elegant design.

Finishes:

Brushed Titanium

Brushed Titanium Gloss Black Gloss Bronze

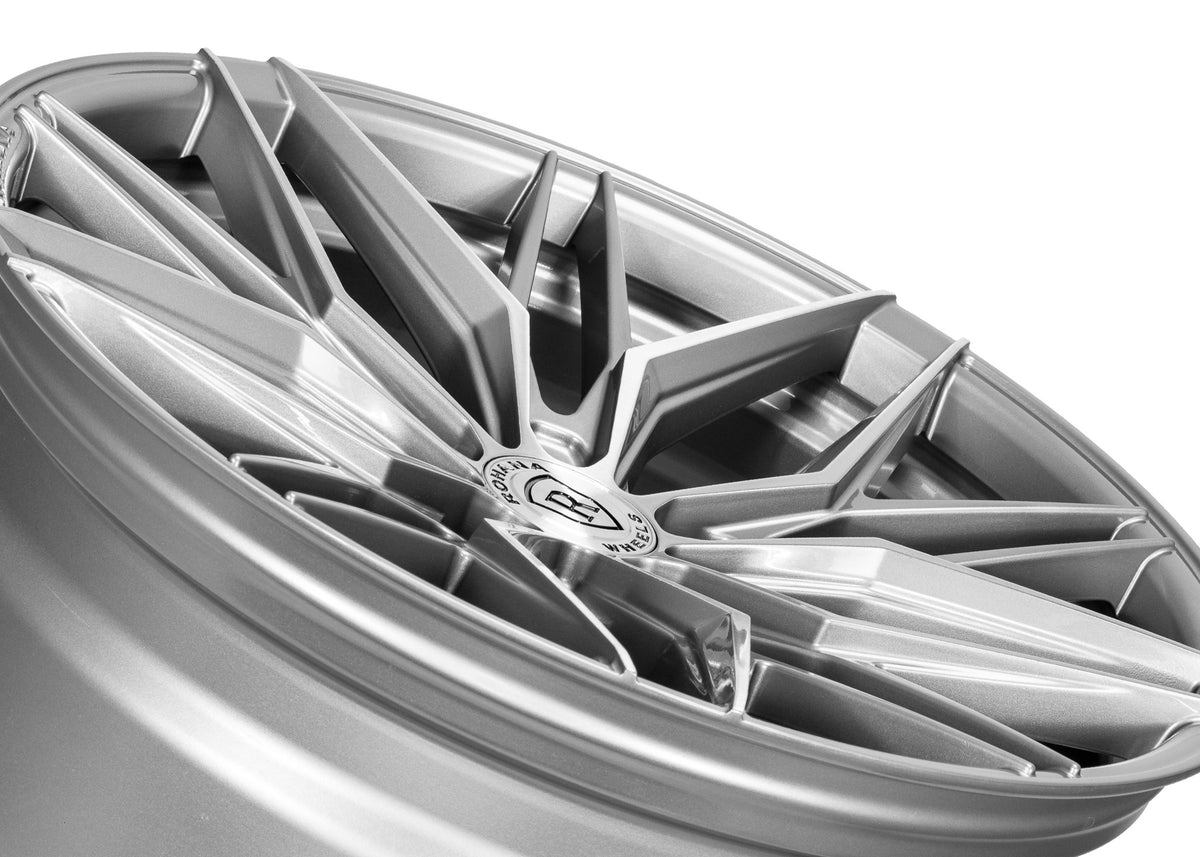

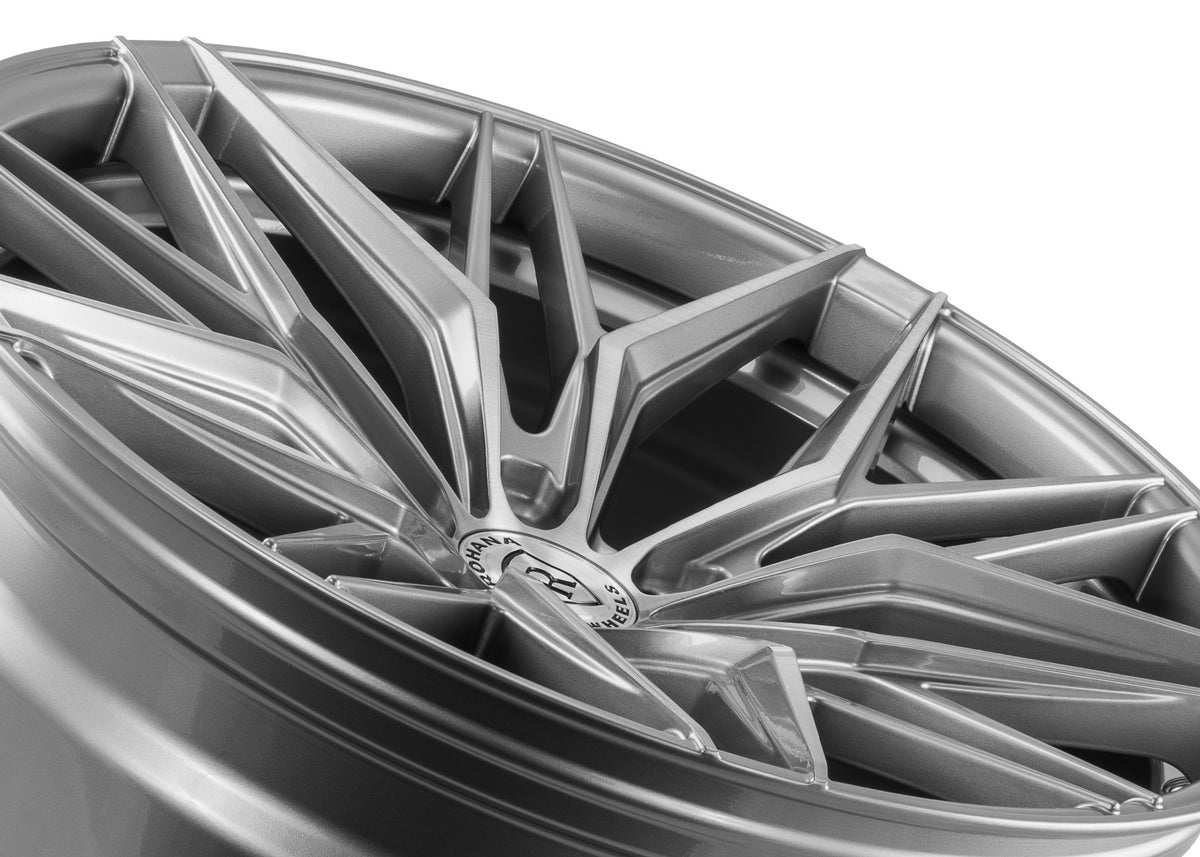

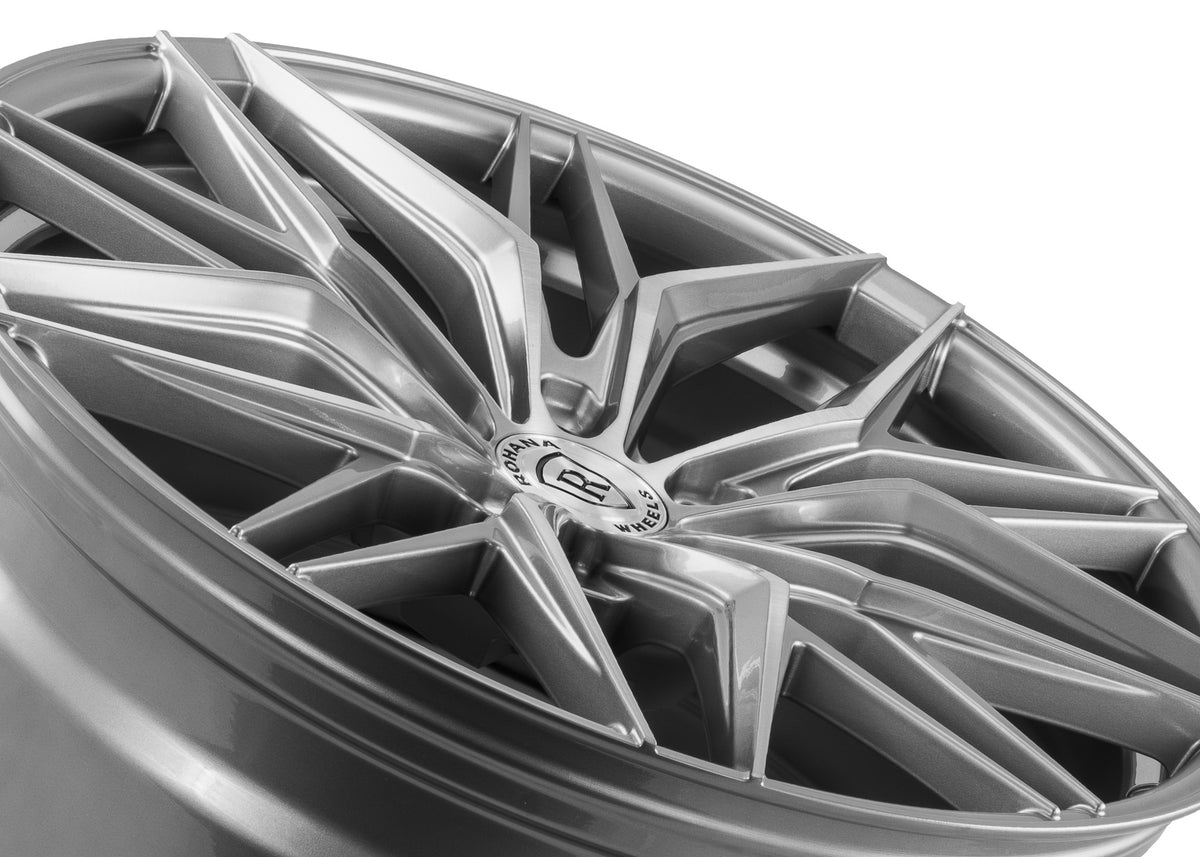

Wheel Concavity Levels

Wheel Widths	Bolt Patterns & Offsets
19x8.5	S 5x112 +25/+35/+42 S 5x114 +35 S 5x120 +33
19x9.5	M 5x112 +30/+42 M 5x114 +30/+40 M 5x120 +20/+35 S 5x120 +53
19x11	D 5x114 +50 D 5x120 +33

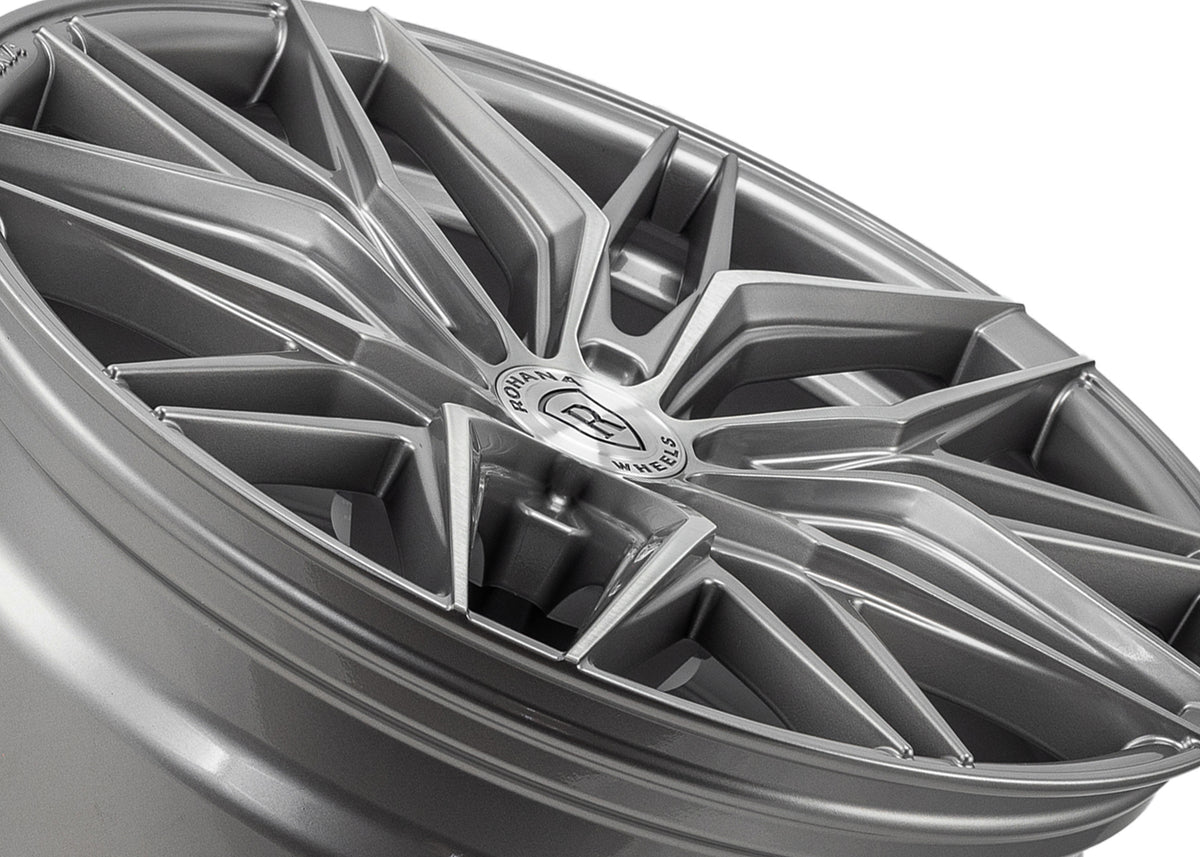

S Standard

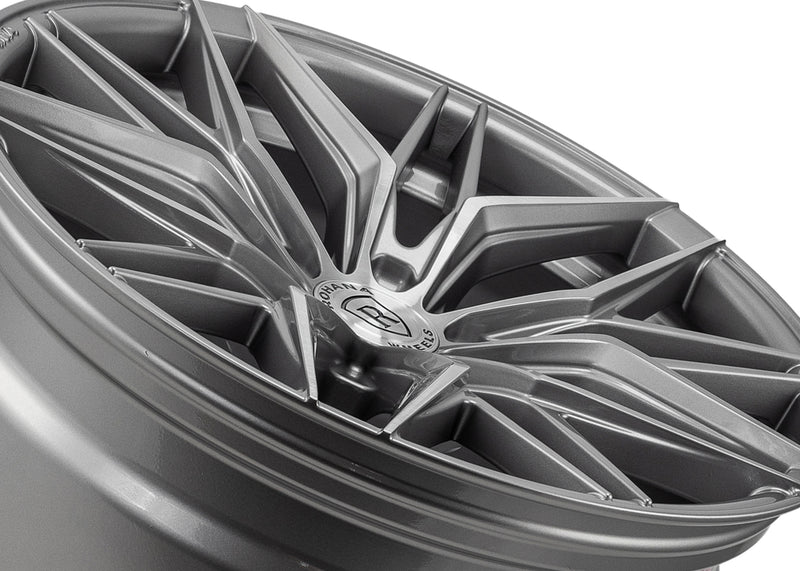

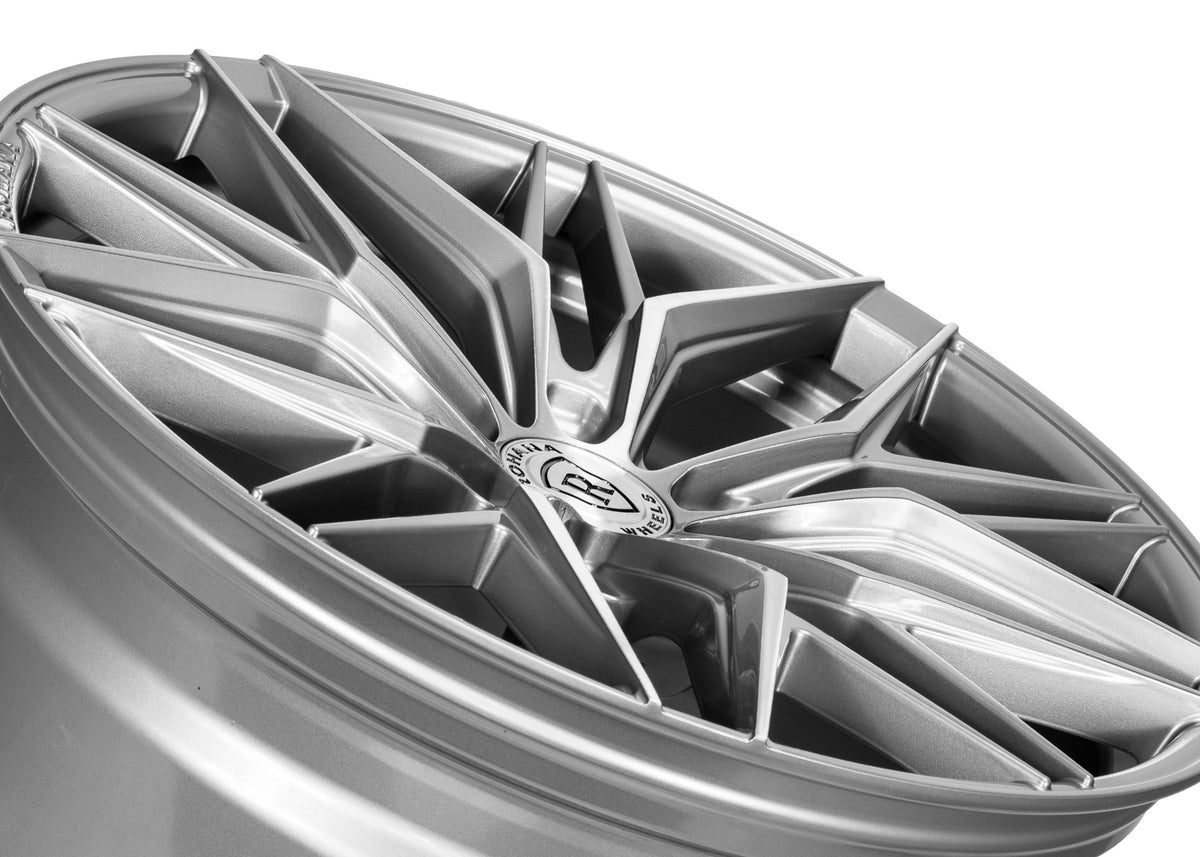

M Mid

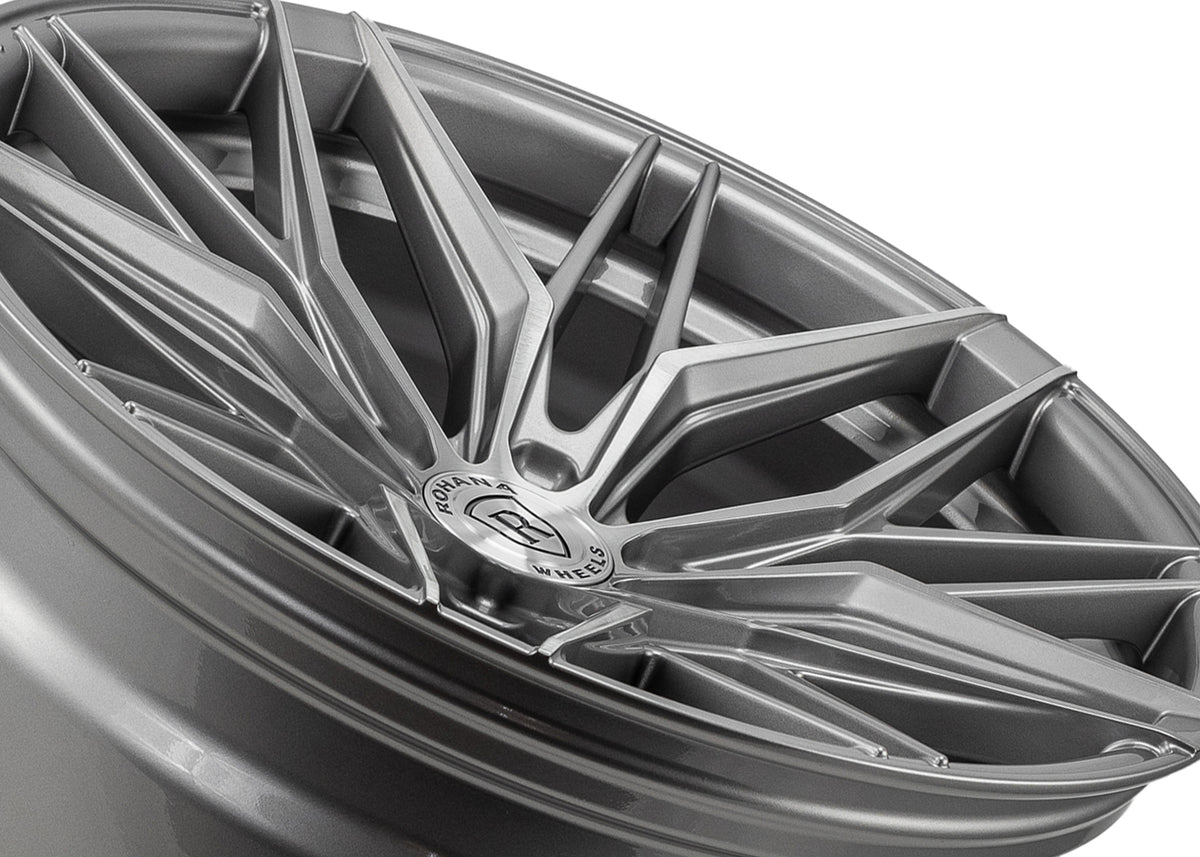

D Deep

Wheel Widths	Bolt Patterns & Offsets
20x8	S 5x112 +30
20x9	S 5x112 +25/+35/+42 S 5x114 +22/+35 S 5x120 +20/+35 S 5x130 +45
20x10	D 5x112 +15/+22/+33/+43 D 5x114 +25/+40 D 5x115 +15 D 5x120 +25/+38
20x10.5	M 5x114 +38
20x11	D 5x112 +22/+32 SD 5x112 +28 SD 5x114 +25 D 5x114 +48 SD 5x115 +0/+20 SD 5x120 +28/+35 D 5x120 +52 S 5x120 +73 D 5x130 +48
20x12	SD 5x114 +22 D 5x120 +52

S Standard

M Mid

D Deep

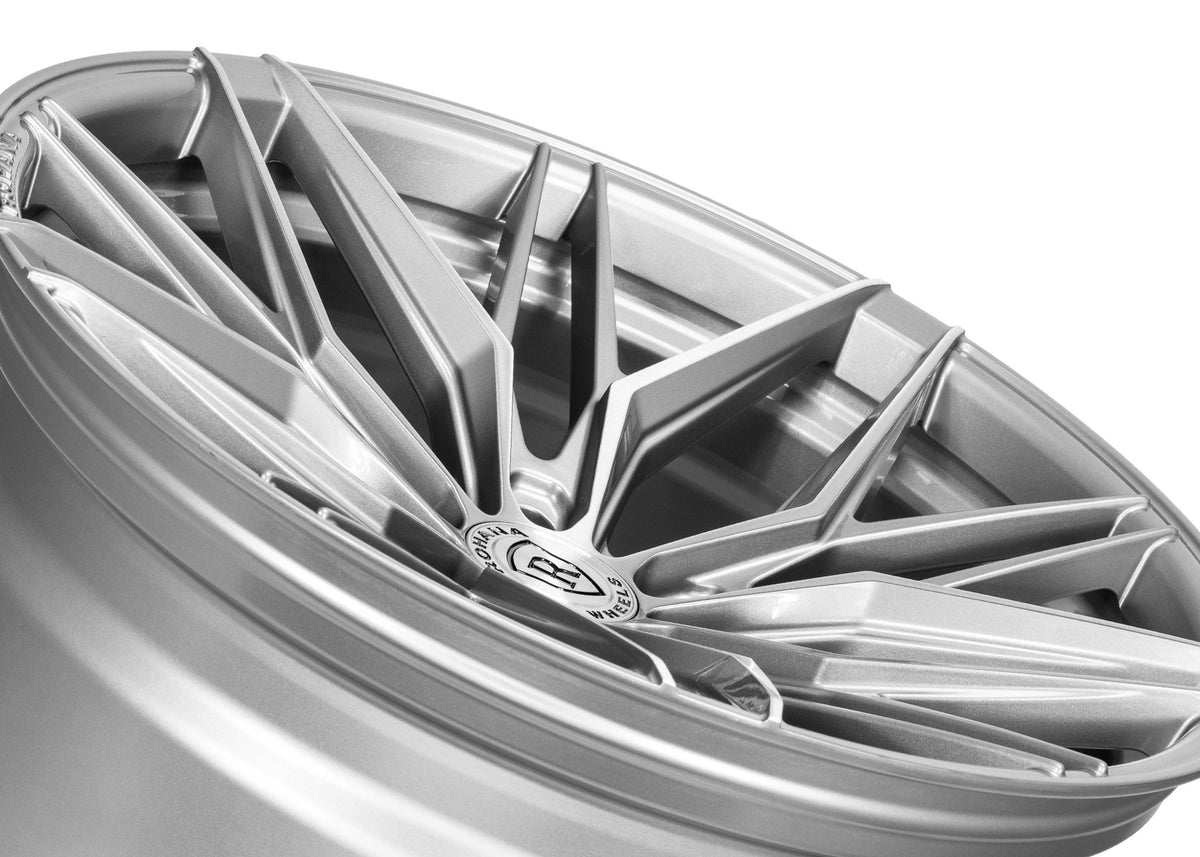

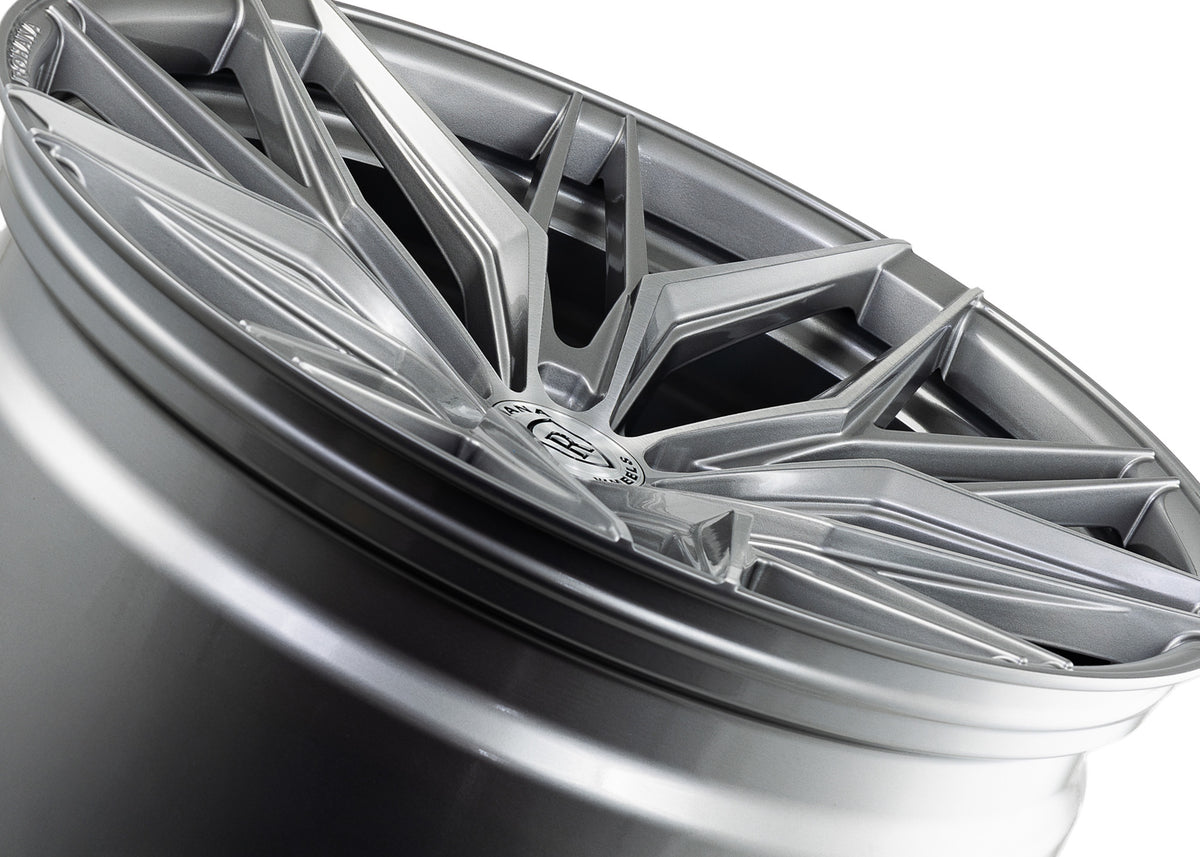

SD Super Deep

Wheel Widths	Bolt Patterns & Offsets
21x9	S 5x112 +20/+35 S 5x114 +35 S 5x120 +30 S 5x130 +45
21x10.5	D 5x112 +20 M 5x112 +30 M 5x114 +38 D 5x120 +25 M 5x120 +35 M 5x130 +45

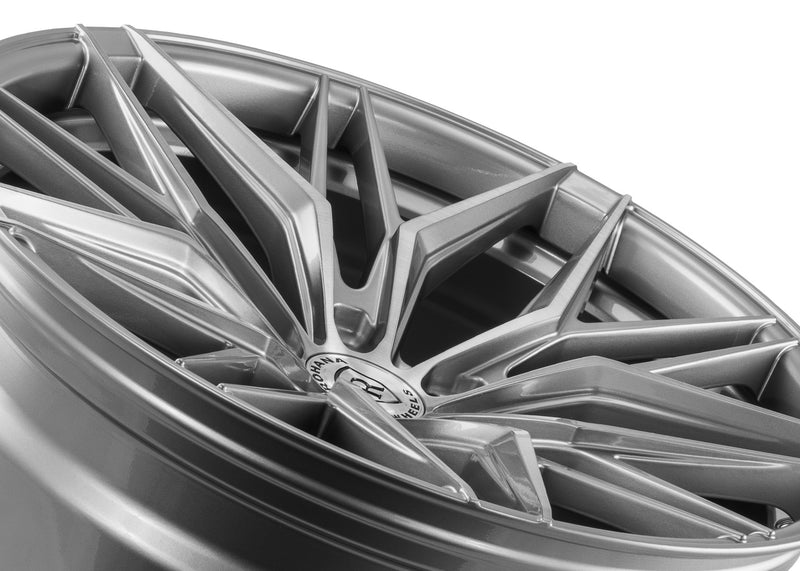

21x11.5	D 5x112 +25 D 5x120 +20 M 5x130 +63

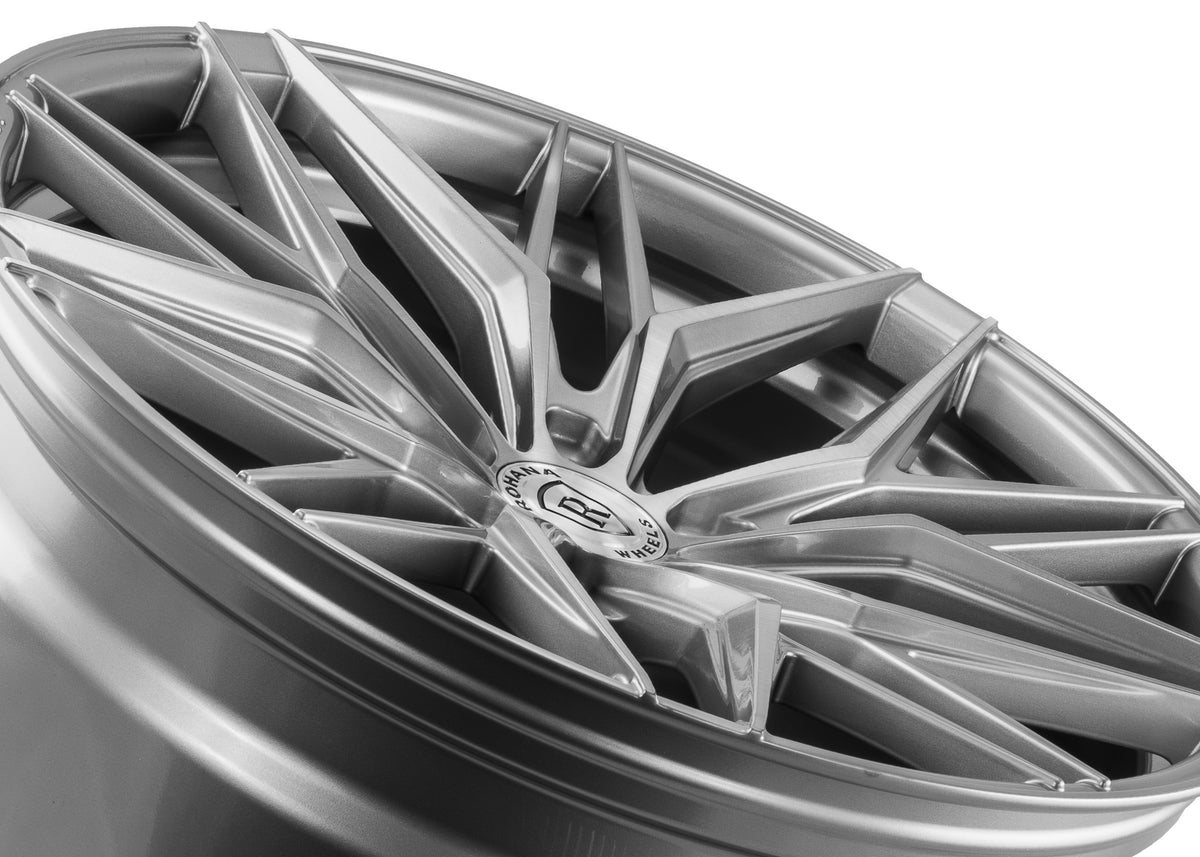

21x12	M 5x120 +52

S Standard

M Mid

D Deep

Wheel Widths	Bolt Patterns & Offsets
22x9	S 5x112 +20/+35 S 5x120 +30 S 5x130 +42

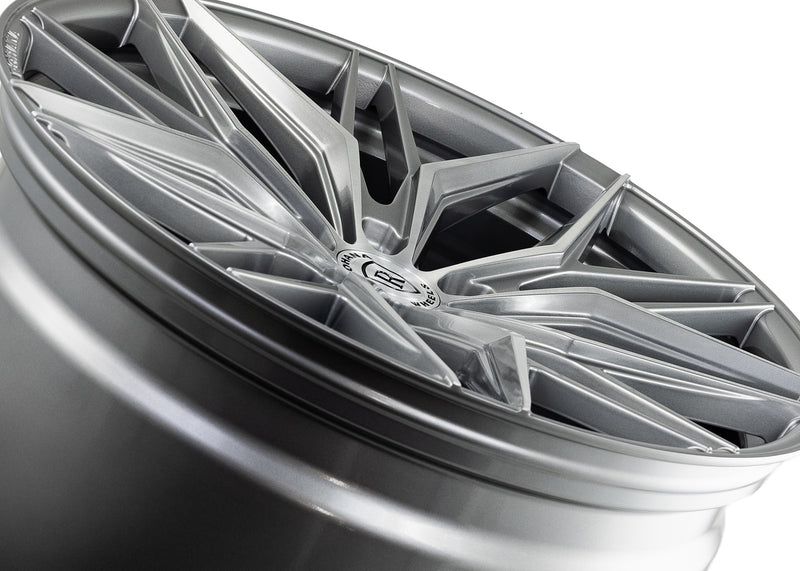

22x10.5	D 5x112 +20/+35 D 5x120 +20/+40 D 5x127 +30 D 5x130 +22/+30/+40
22x11.5	SD 5x112 +28 SD 5x120 +20 D 5x130 +55

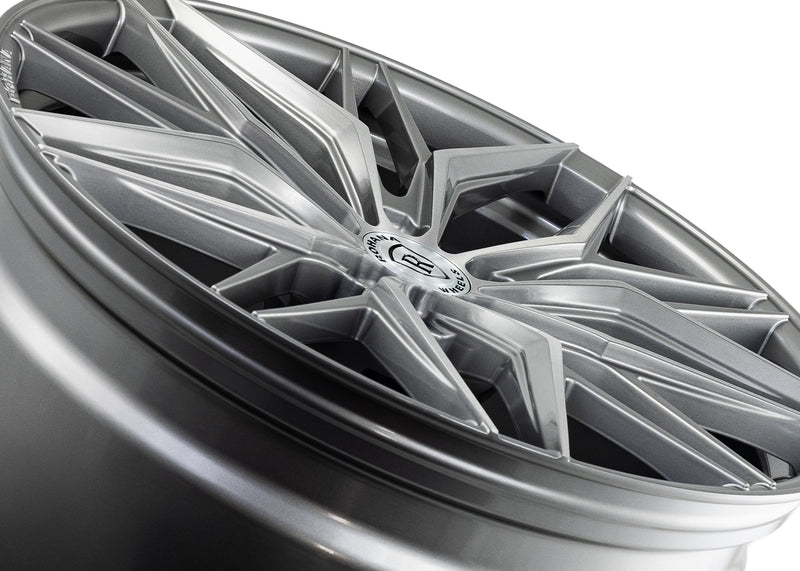

S Standard

M Mid

D Deep

Available Finishes

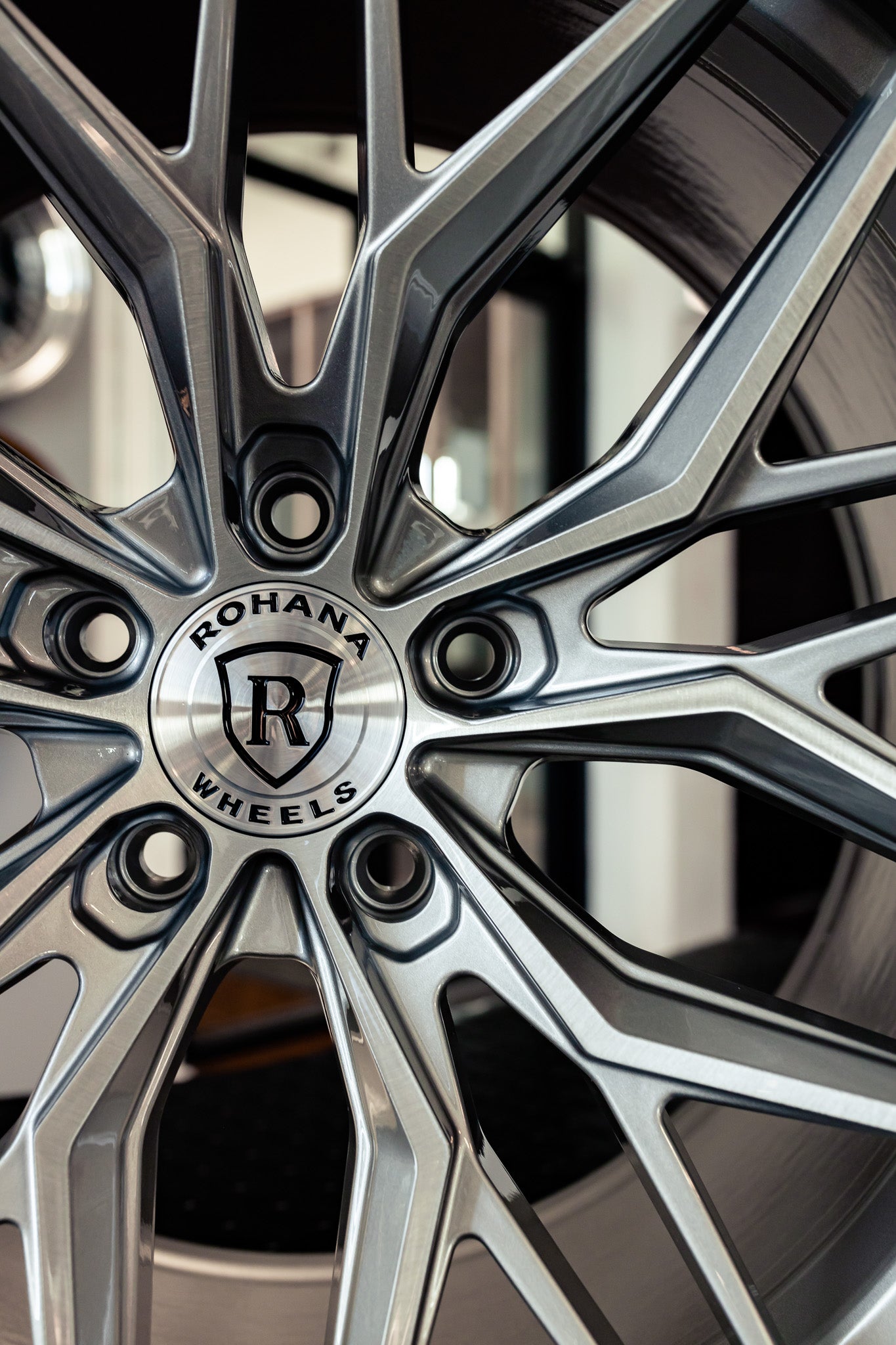

Brushed Titanium

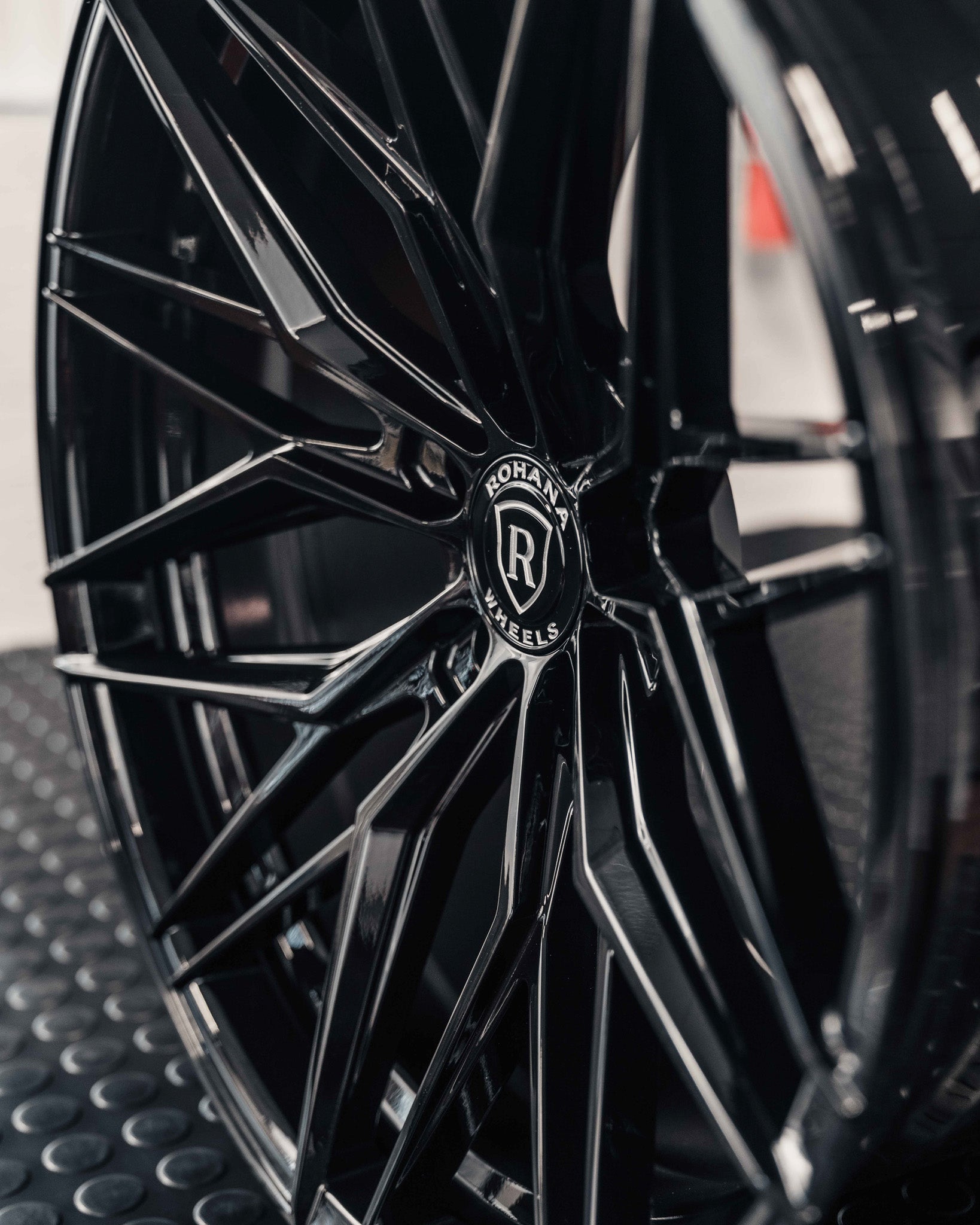

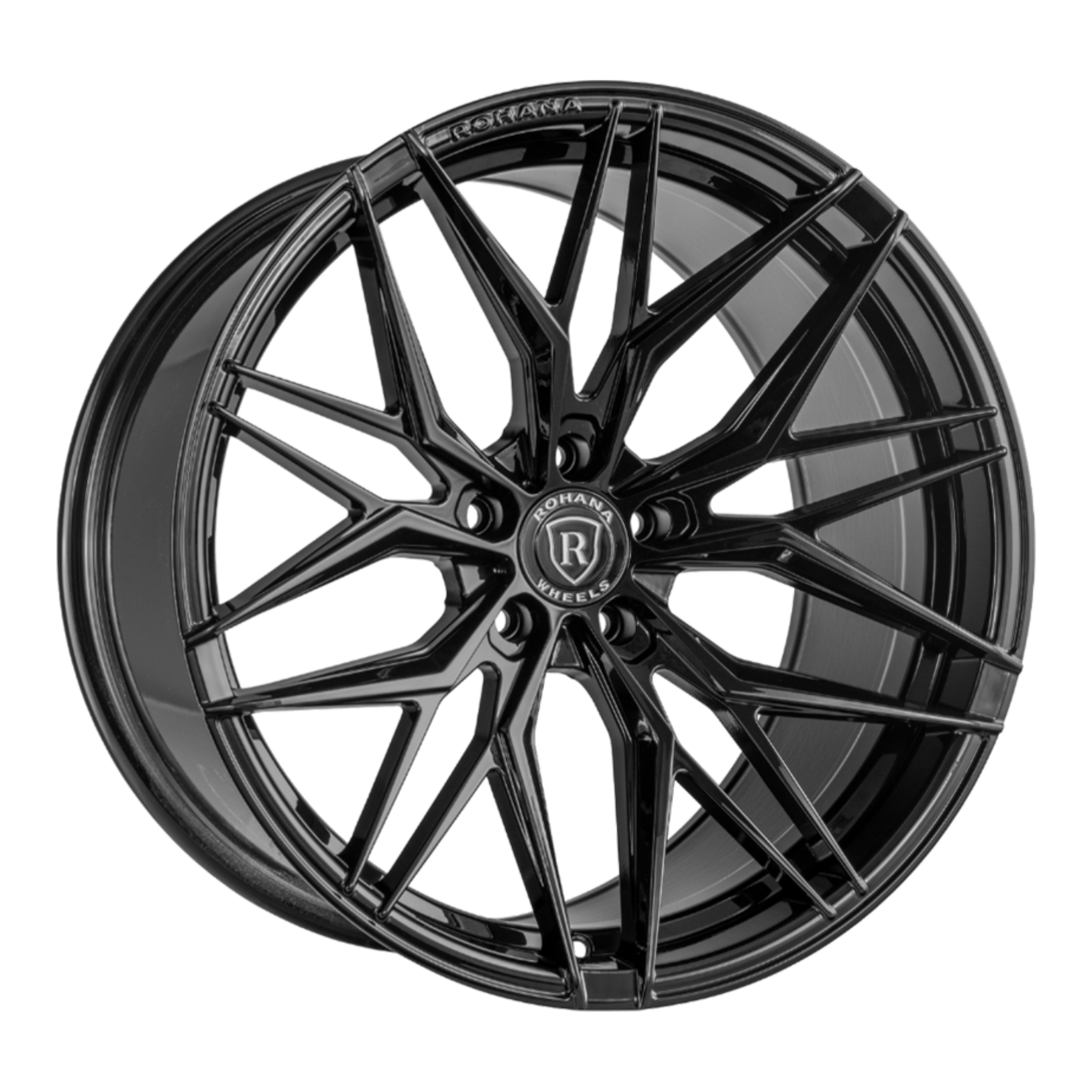

Gloss Black

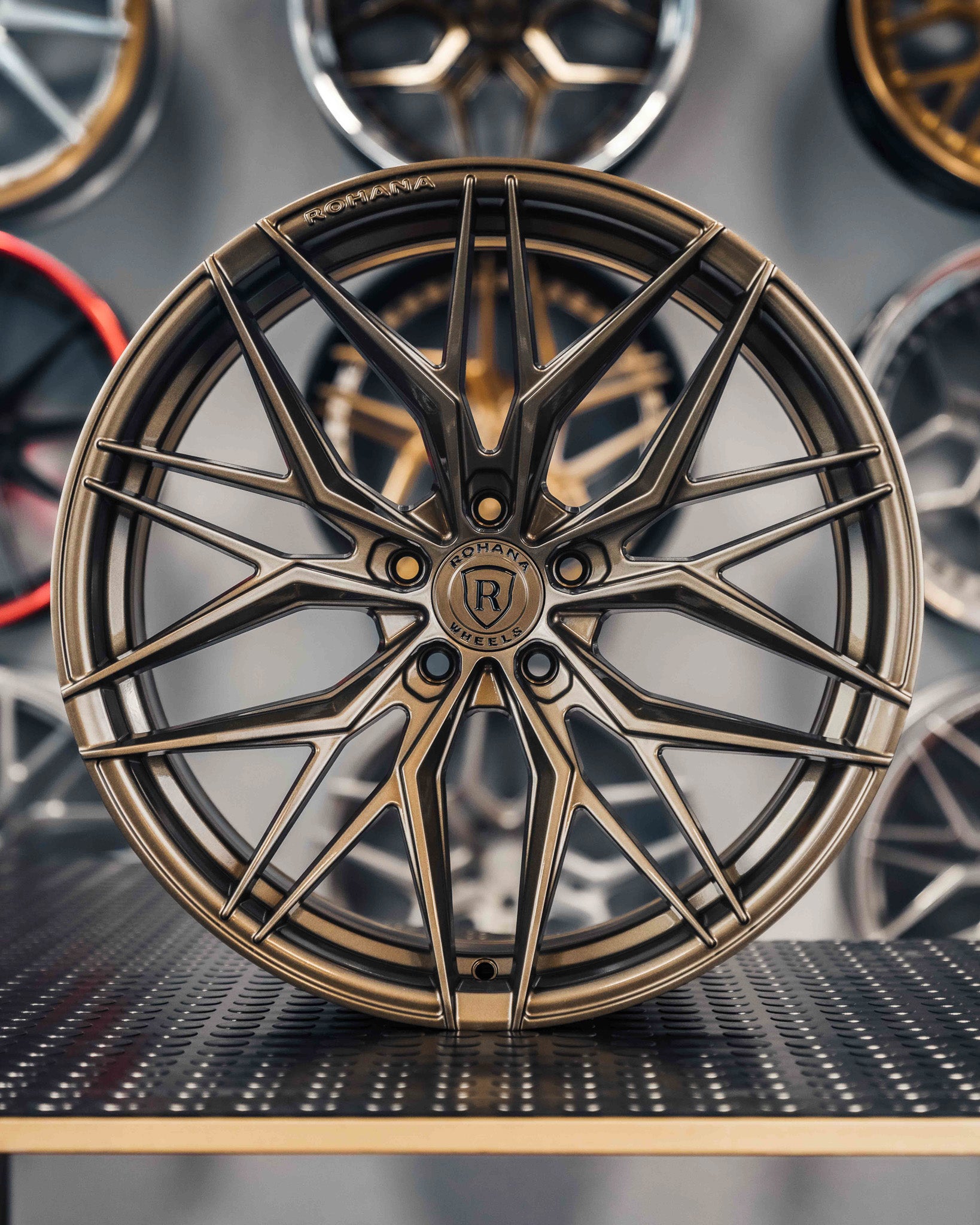

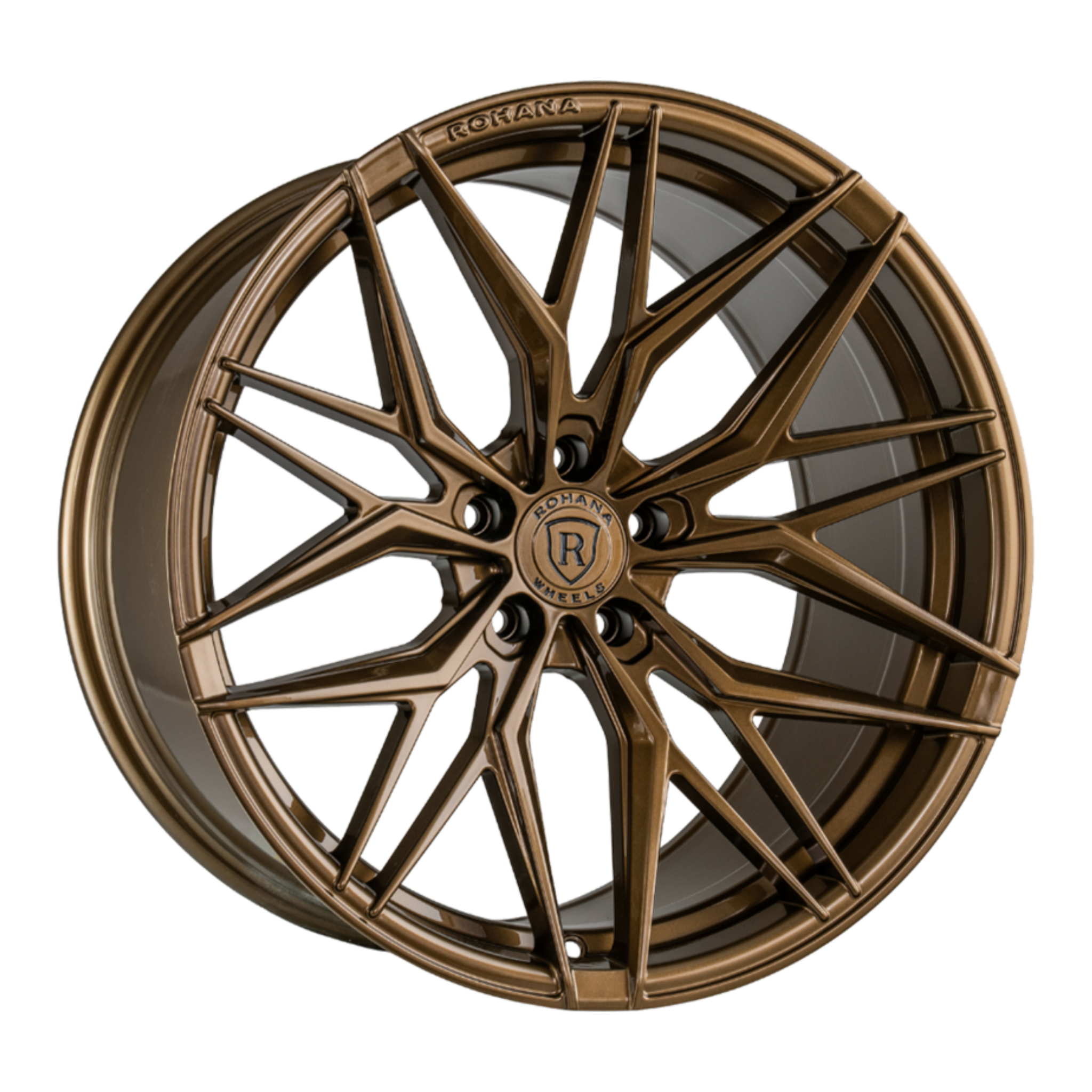

Gloss Bronze

See Collection

Because

Details Matter

Because

Details Matter

Name *

Email *

Location *

Vehicle Year *

Vehicle Make *

Vehicle Model & Trim (If Applicable) *

Wheel Specification

Wheel Model *

Wheel Finish *

Message

Cross Forged

Forged

Rohana Concave

RFX17

Starting at $520 ea.

Wheel Concavity Levels

Available Finishes

Details Matter

Details Matter

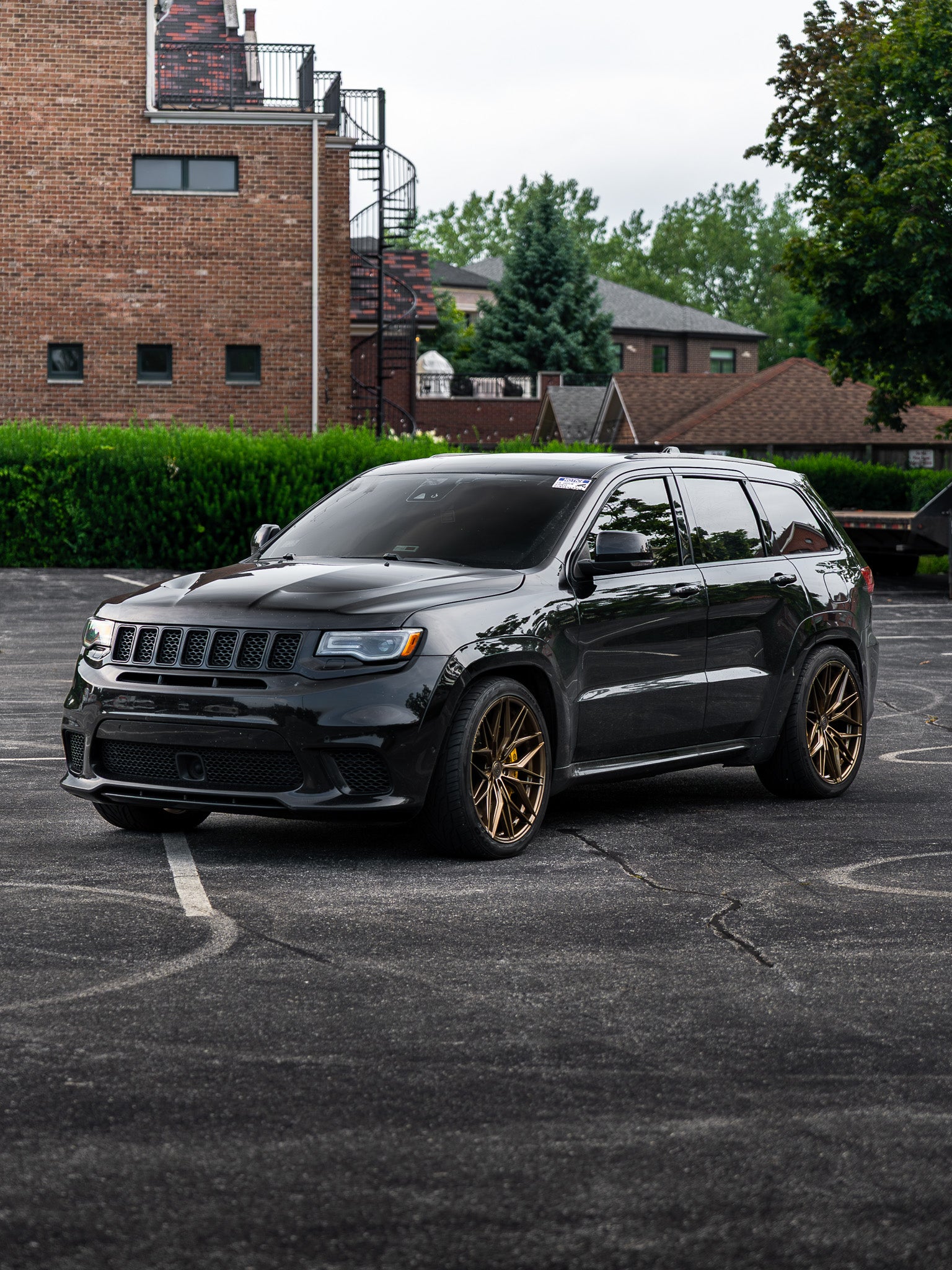

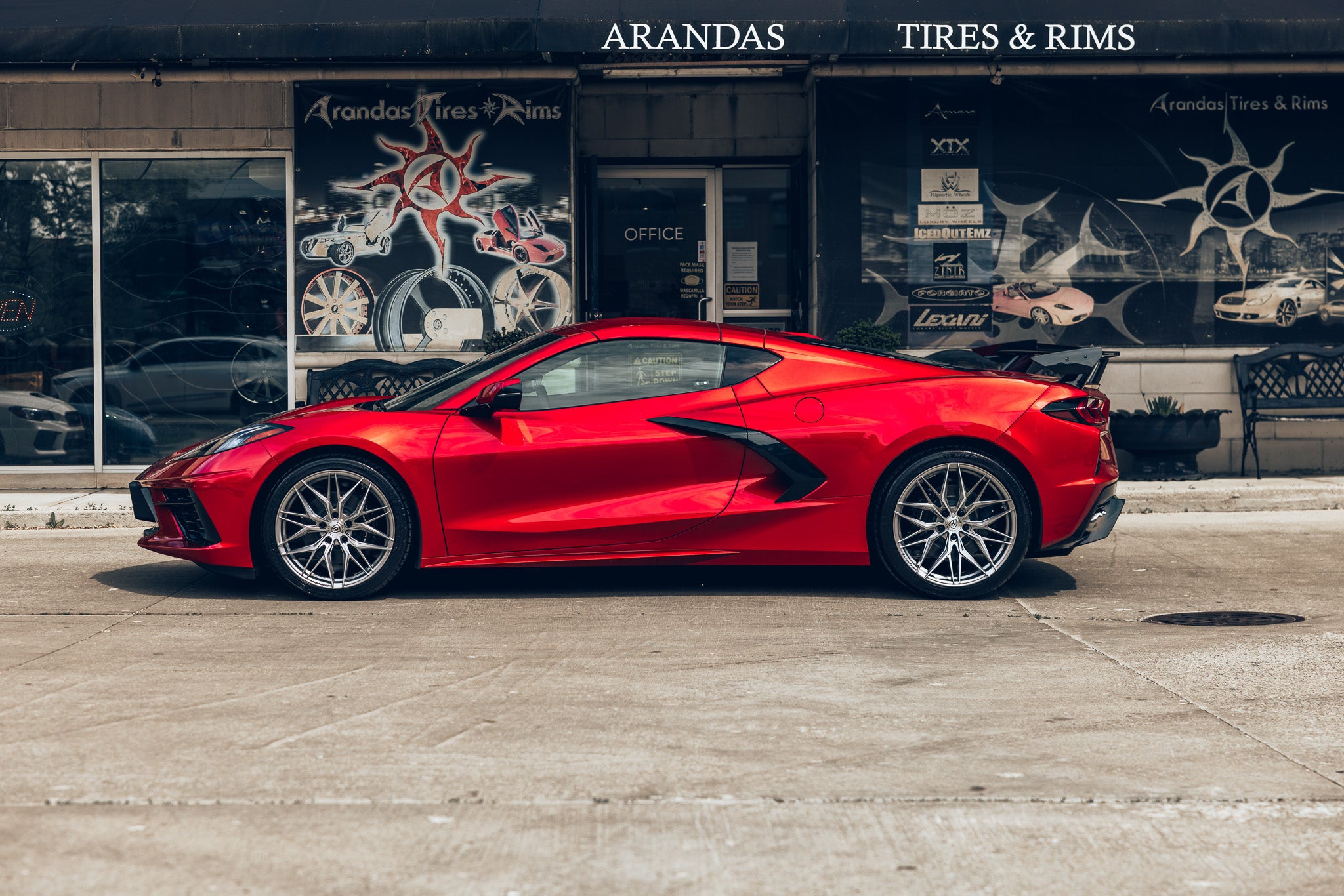

Featured RFX17 Builds
